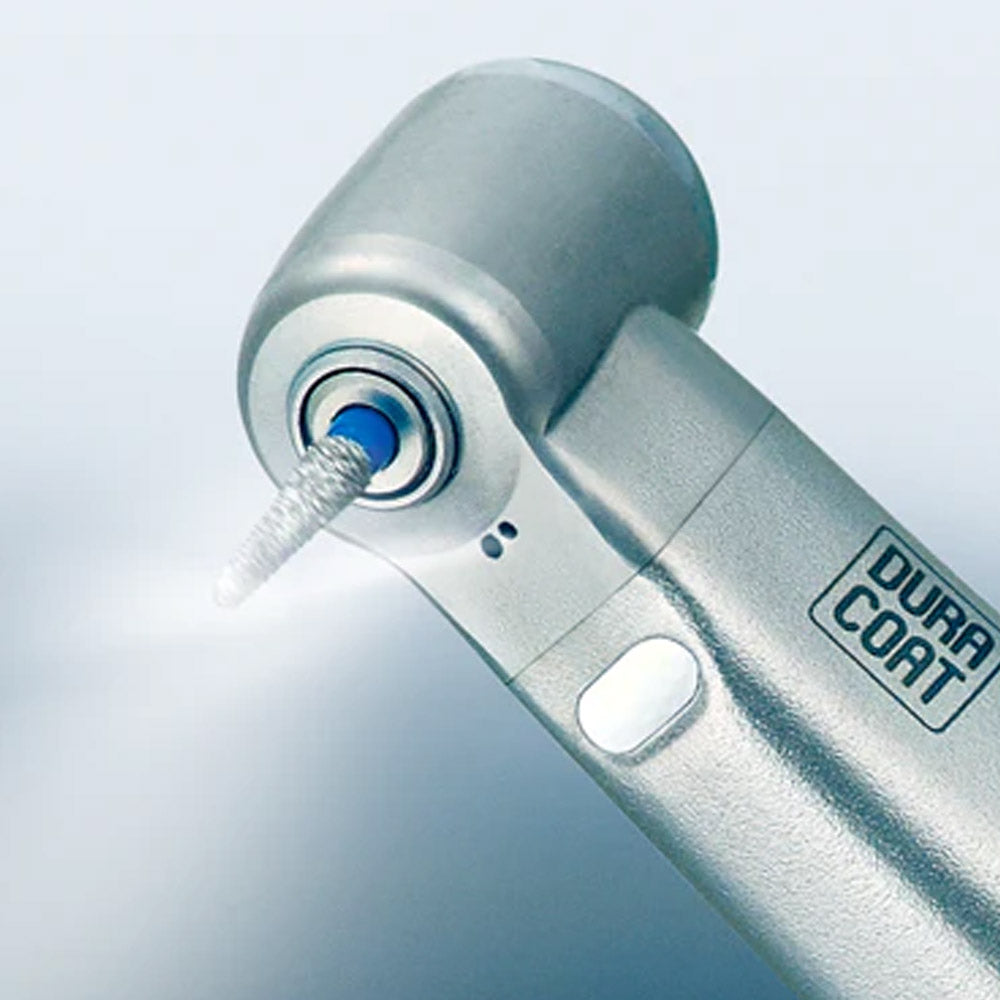

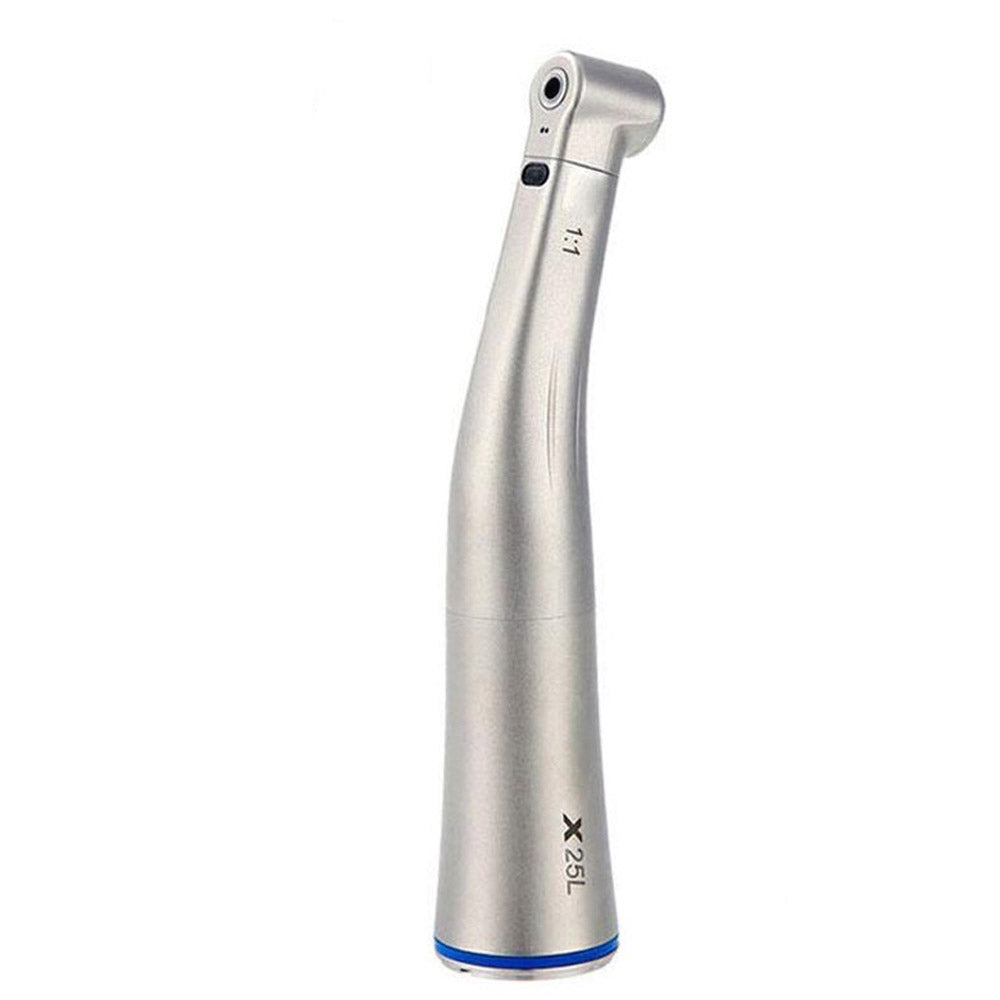

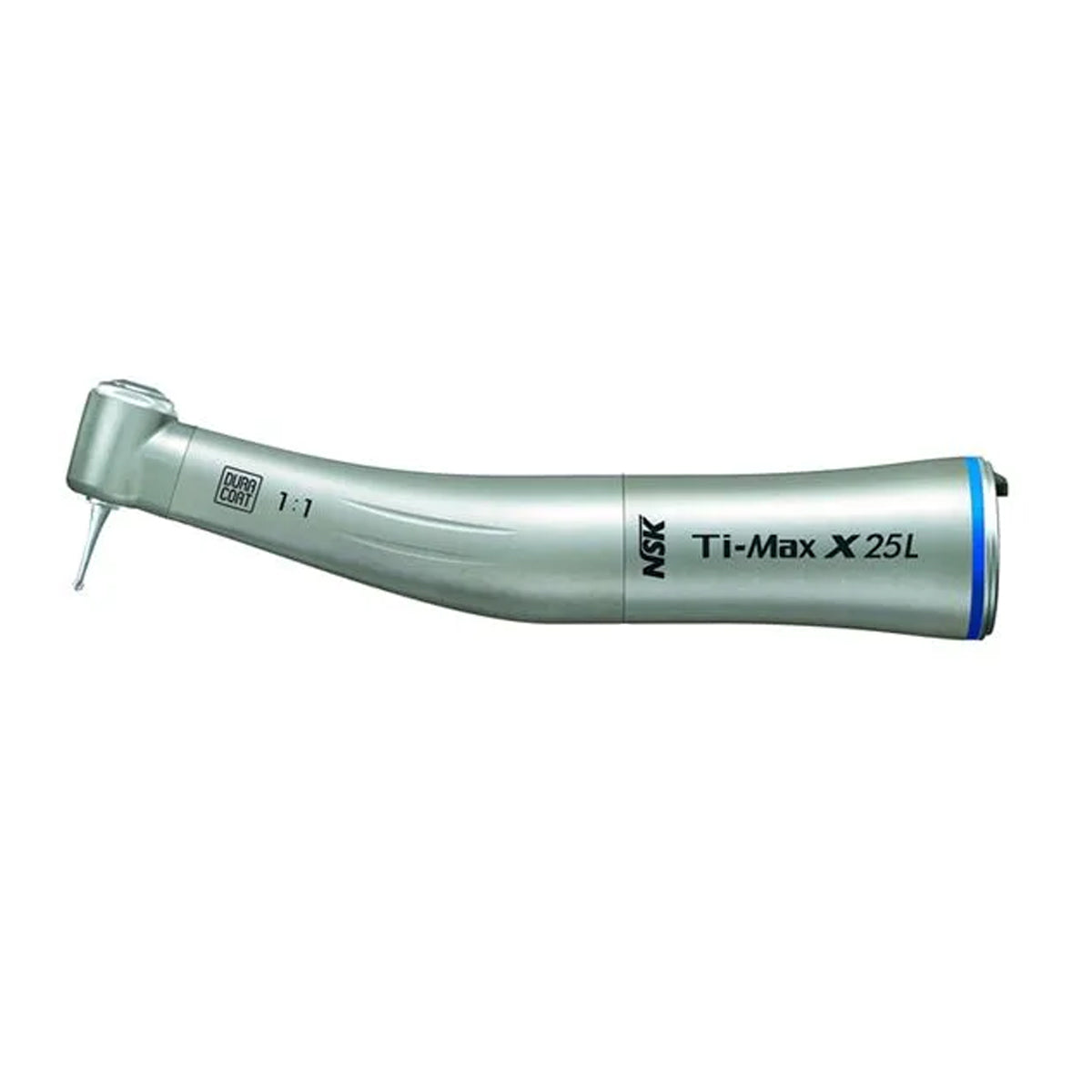

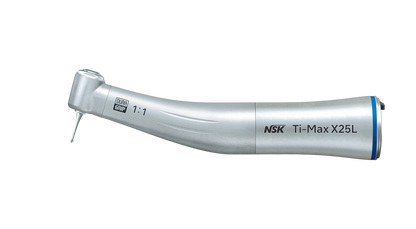

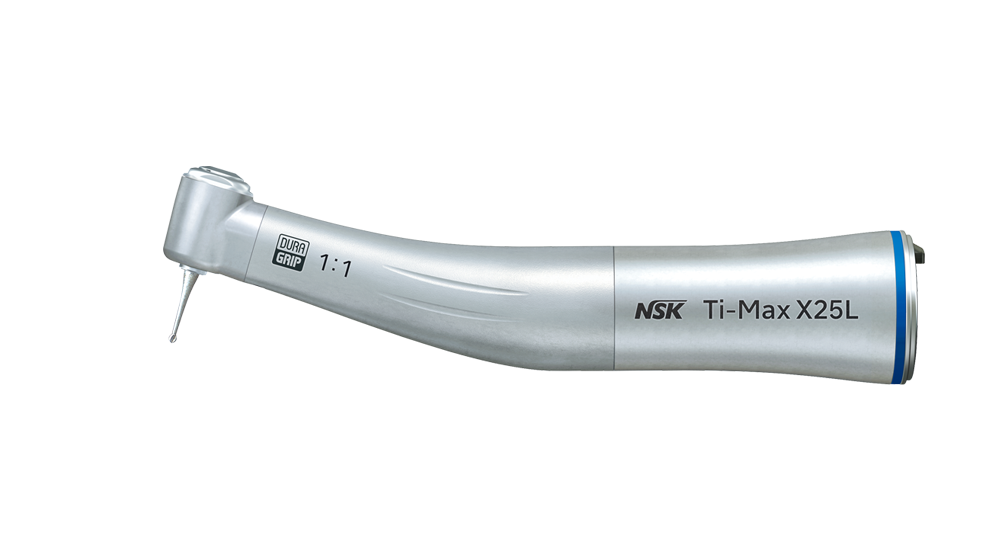

NSK Ti-Max X25L: 1:1 Direct Drive Fiber Optic Contra-Angle (C601)

Precision and Ergonomics Without Compromise. The NSK Ti-Max X25L is the flagship 1:1 direct drive contra-angle within the premium Ti-Max X series. Engineered with a Solid Titanium Body and high-intensity Cellular Glass Optics, this handpiece provides clinicians with unrivaled visibility and exceptional ergonomic balance. Designed for a wide range of clinical applications, from cavity preparation to finishing and polishing, the X25L offers the stability and power required for precision dentistry while being significantly lighter than traditional stainless steel models.

Key Features & Clinical Benefits:

• Solid Titanium Body with DURAGRIP: The pure titanium exterior makes this handpiece 30% lighter than stainless steel, drastically reducing hand and wrist fatigue. The DURAGRIP coating provides a scratch-resistant, non-slip surface for superior tactile control even during long procedures.
• Cellular Glass Optics: Integrated fiber optics deliver a brilliant, consistent 25,000 LUX directly to the preparation site. The cellular glass rods are highly durable and maintain their light intensity even after years of repeated autoclave cycles.
• 1:1 Direct Drive Transmission: Ensures that the output speed matches the motor input perfectly, providing stable and predictable performance for general restorative work.
• Quattro Water Spray: Features four asymmetrical water sprays that provide high-volume cooling to the entire bur surface, preventing thermal damage to the pulp and ensuring a clear field of view.
• Clean Head System: NSK’s patented anti-suck-back mechanism prevents oral fluids and contaminants from entering the handpiece head, protecting the internal ceramic bearings and extending the instrument's lifespan.
• Ceramic Bearings: These bearings are 25% harder than conventional steel bearings and half the weight, ensuring a whisper-quiet, vibration-free operation and superior durability.
• Microfilter Integration: A built-in water filter prevents particles from entering the spray system, ensuring consistent, clog-free cooling performance.

Technical Specifications:
