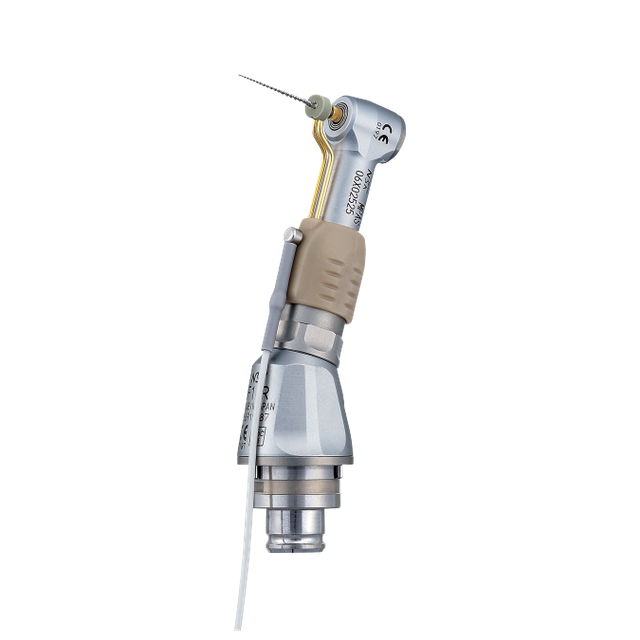

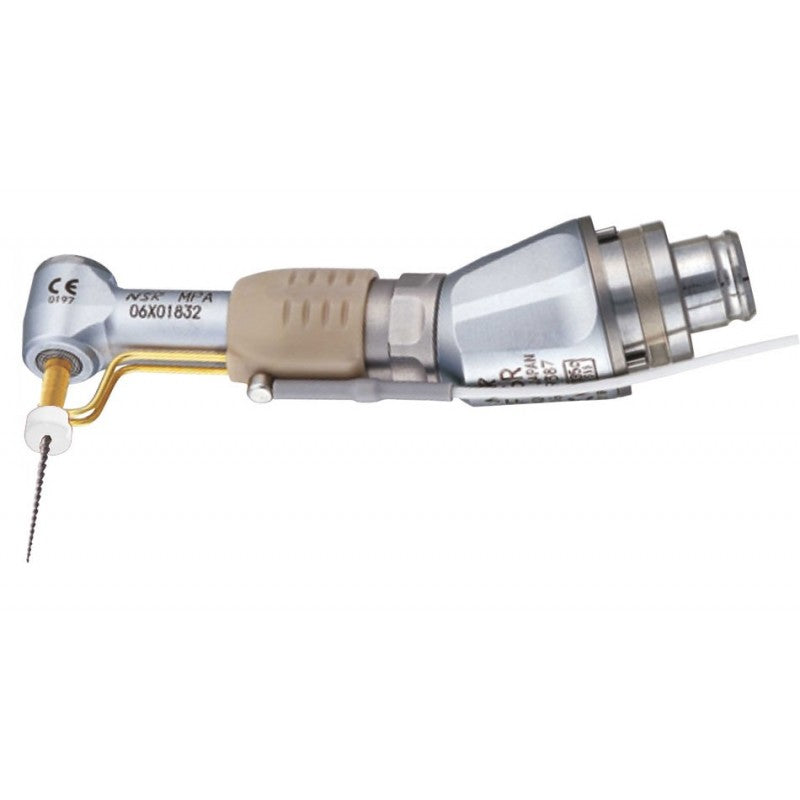

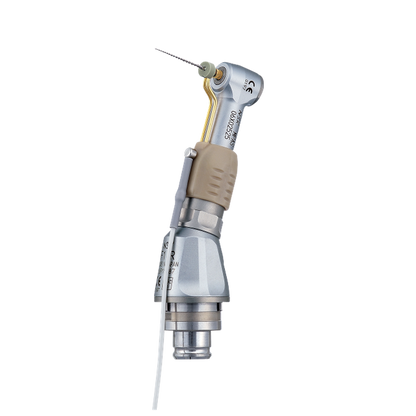

NSK MPAS-F20R: 20:1 Gear Ratio Endomotor Head with Apex Locator Connection (Y110044)

Precision and Safety Integrated into a Single Head. The NSK MPAS-F20R is a high-performance 20:1 reduction contra-angle head designed for clinicians who prioritize accuracy and safety during endodontic procedures. Featuring an integrated apex locator connection, this head allows for real-time file position monitoring when used with compatible NSK endomotors and apex locators. With its miniature head and 360° rotation, the MPAS-F20R provides the ultimate in accessibility and visibility, ensuring a controlled and efficient root canal treatment.

Key Features & Clinical Benefits:

• 20:1 Reduction Gear Ratio: Delivers high torque and stable, low-speed rotation, which is essential for safely navigating canals with Ni-Ti rotary files. This gear ratio ensures that the motor's power is precisely controlled.
• Integrated Apex Locator Monitor: Allows for direct connection to an apex locator. This enables the clinician to monitor the file's position in the canal in real-time on the endomotor's display, enhancing safety and preventing over-instrumentation.
• Miniature Head for Superior Access: The ultra-compact head design provides an expanded operational field of view, making it easier to work in the posterior regions of the mouth and in patients with limited opening.
• 360° Head Rotation: The head can be rotated a full 360 degrees, allowing the operator to adjust the working angle for maximum ergonomic comfort and clinical precision without having to reposition the entire handpiece.
• NSK original Push Button Chuck: Features a reliable, one-touch mechanism for quick and easy file changes. The chuck is designed to hold files securely under load, providing a stable and vibration-free experience.
• Compatible with Leading NSK Motors: Specifically designed for use with the Endo-Mate AT, Endo-Mate DT, and Endo-Mate TC2 systems.
• Fully Autoclavable: The head can be safely sterilized in an autoclave up to 135°C, ensuring compliance with the highest standards of infection control.

Technical Specifications:
