Coxo CX235 C6-23 Implant Handpiece | 20:1 Reduction High-Torque Contra Angle

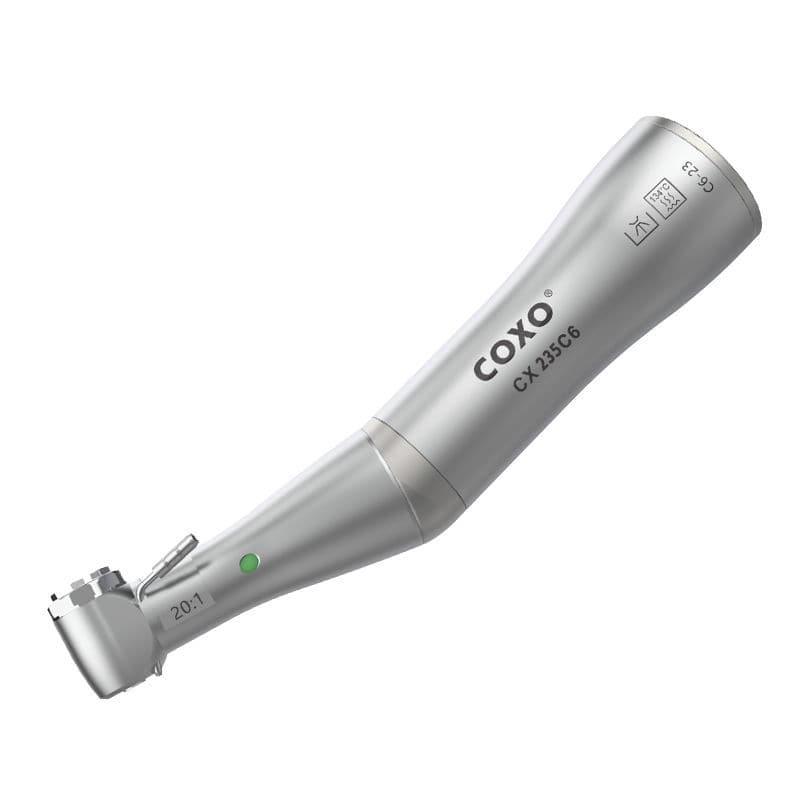

The COXO CX235 C6-23 Implant Handpiece is a robust, non-fiber optic surgical instrument designed for high-torque dental procedures. While the C6-22 model is known for its lighting, the C6-23 focuses on mechanical reliability and ease of maintenance, making it a "workhorse" for implantology.

Optimized for Surgical Power

• This handpiece is a vital addition to your airotor dental inventory, specifically targeting users who prefer the tactile feel of a high-torque contra-angle without the need for integrated optics.
• Maximum Torque: Delivers a powerful 80 N.cm of torque, which is slightly higher than some fiber-optic counterparts, providing extra strength for heavy-duty bone drilling.
• 20:1 Reduction Ratio: Precision-engineered to reduce speed while maximizing power, operating at a controlled 2,000 RPM for safe and accurate osteotomy.
• Dual Irrigation: Features a Kirschner/Meyer internal and external cooling system to prevent bone necrosis by ensuring constant water flow directly to the bur.
• Advanced Sealing: Built with a double-seal structure that effectively blocks blood and fluids from entering the head, significantly extending the life of the internal gears.
• Twist-Disassembly: Designed for easy disassembly with a simple twist, allowing for thorough internal cleaning and direct oiling of bearings without specialized tools.

Technical Specifications

• Gear Ratio: 20:1 Reduction

• Max Torque: 80 N.cm

• Max Speed: 2,000 RPM

• Chuck Type: Push Button

• Bur Size: Ø2.35mm (ISO1797-1)

• Connection: ISO E-Type (Compatible with most surgical motors)
